Workflow Diagram Guide: Symbols, Types, and Real Examples
A workflow diagram maps the steps, decisions, and hand-offs in a process. Learn the common symbols, the main types, and see real examples you can copy.
A workflow diagram is a visual map of how a task or process moves from start to finish. It shows the steps involved, the order in which they happen, the decisions that change the path, and the hand-offs between people or teams.
Instead of explaining a process through paragraphs of documentation, a workflow diagram makes its structure visible at a glance.
Teams use workflow diagrams to document processes, train new employees, identify bottlenecks, clarify responsibilities, and agree on how work should actually run.
This guide explains what a workflow diagram is, the symbols it uses, the main types of workflow diagrams, practical examples, and how to create one.
What Is a Workflow Diagram?
A workflow diagram is a visual representation of the sequence of activities required to complete a process. It usually consists of shapes connected by arrows. Each shape represents an action, decision, input, output, or another part of the process, while arrows show how work moves from one stage to another.
A simple workflow might look like this:
Request submitted → Manager reviews → Approved? → Process request → Complete
If the manager rejects the request, another branch might send it back to the requester for revision. That branching structure is what makes workflow diagrams particularly useful: they show not only what normally happens, but also what happens when conditions change.
What Does a Workflow Diagram Show?
A workflow diagram can show where a process starts and ends; tasks that need to be completed; the order of those tasks; decision points; alternative paths; approvals; people or teams responsible for each step; hand-offs between departments; inputs and outputs; rework loops; and exceptions or failure paths.
The goal is not to visualize every possible detail. A useful workflow diagram should make the process easier to understand than the documentation it replaces.
Why Use a Workflow Diagram?
Document a process
Many business processes begin as informal knowledge. One employee knows what happens after a request arrives; another knows which manager needs to approve it. A workflow diagram creates a shared view that can be reviewed and documented.
Identify bottlenecks
Visualizing the full workflow can reveal steps that slow everything else down: repeated data entry, a missing check, or several tasks waiting on the same approval.
Clarify ownership
In cross-functional work, the problem is often not knowing what happens next but knowing who is responsible. A swimlane diagram separates activities by person, role, or department so hand-offs are explicit.
Train new team members
A diagram can explain an operational process faster than several pages of instructions. New employees can see where their responsibilities begin, what happens before their task, and where the work goes afterward.
Improve before automating
Mapping the existing process helps teams distinguish between steps that can be automated, steps that need human judgment, and steps that may not be necessary at all.
Workflow Diagram Symbols
Workflow diagrams use a relatively small set of standard symbols, many of which come from traditional flowchart notation.
You do not need dozens of specialized symbols to map most business workflows.
| Symbol | Name | Meaning | Example |
|---|---|---|---|
| Oval / rounded rectangle | Terminator | Start or end of the process | Request received |
| Rectangle | Process step | An action or task | Review application |
| Diamond | Decision | A condition that creates different paths | Approved? |
| Parallelogram | Input / output | Information entering or leaving the process | Customer form |
| Arrow | Flow line | Direction of the workflow | Review → Approval |
| Circle | Connector | Connects different parts of the diagram | Continue to next section |
Use verbs for process-step labels, such as “Review application” or “Send confirmation.” Keep a primary left-to-right or top-to-bottom direction, and label decision branches clearly.
Types of Workflow Diagrams
1. Process Flowchart
A process flowchart shows a sequence of tasks from beginning to end, with decision diamonds wherever the process can follow different paths. It is best for standard operating procedures, approval processes, order processing, content workflows, and customer-service procedures.
2. Swimlane Diagram
A swimlane diagram organizes steps into horizontal or vertical lanes. Each lane represents a person, department, team, or system. It makes hand-offs visible and is especially useful for employee onboarding, procurement, finance approvals, and customer escalation.
3. Data Flow Diagram
A data flow diagram focuses on information rather than individual tasks. For example: Website → Order system → Payment processor → CRM → Fulfillment system. It is useful for software systems, data pipelines, integrations, and technical documentation.
4. Decision Tree
A decision tree focuses on branching logic: a sequence of questions and possible outcomes. It is useful for troubleshooting, eligibility decisions, support procedures, compliance checks, and request routing.
Which Workflow Diagram Type Should You Use?
| If you need to show | Use |
|---|---|
| Steps in a process | Process flowchart |
| Who owns each step | Swimlane diagram |
| How information moves | Data flow diagram |
| Branching decisions | Decision tree |
Complex workflows may combine several of these ideas. For example, a swimlane diagram can still contain decision diamonds, exception paths, and rework loops.
Workflow Diagram Examples

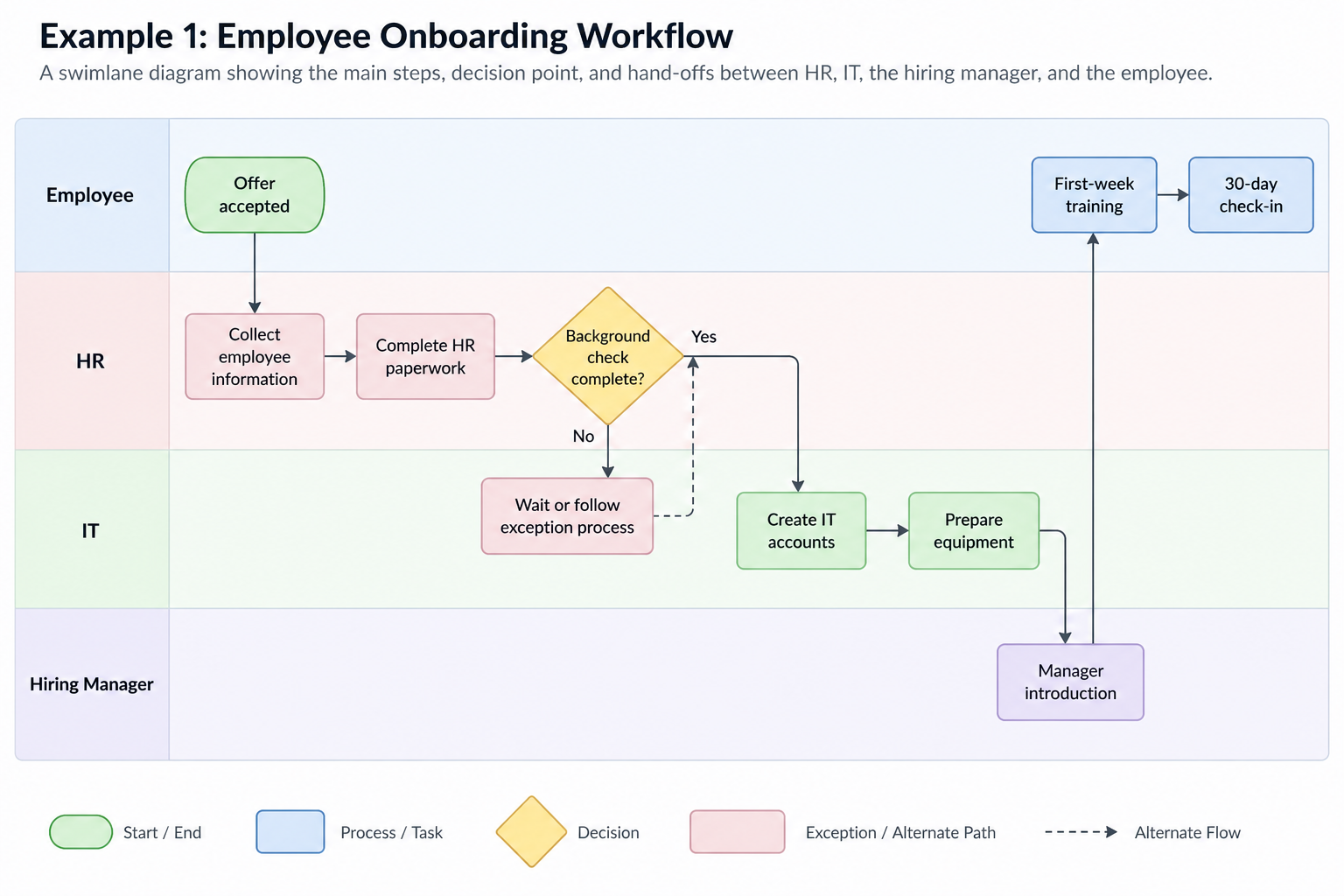

Example 1: Employee Onboarding Workflow
Offer accepted → Collect employee information → Complete HR paperwork → Create IT accounts → Prepare equipment → Manager introduction → First-week training → 30-day check-in
Because HR, IT, the hiring manager, and the employee all participate, this workflow is particularly suitable for a swimlane diagram.

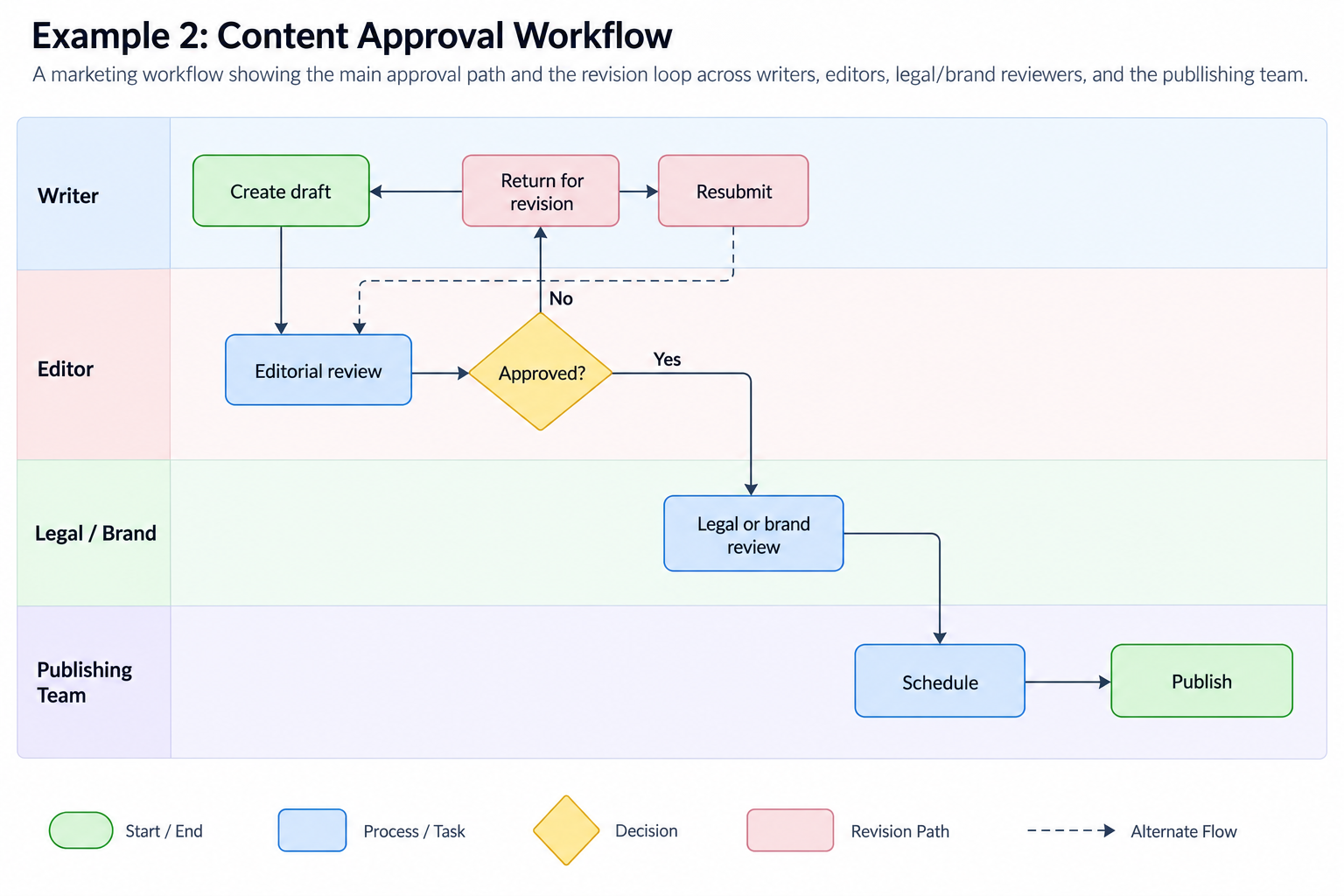

Example 2: Content Approval Workflow
Create draft → Editorial review → Approved? → Legal or brand review → Schedule → Publish
If the editor rejects the draft: Not approved → Return for revision → Resubmit → Editorial review. The diagram makes the revision loop explicit instead of presenting approval as a simple linear process.

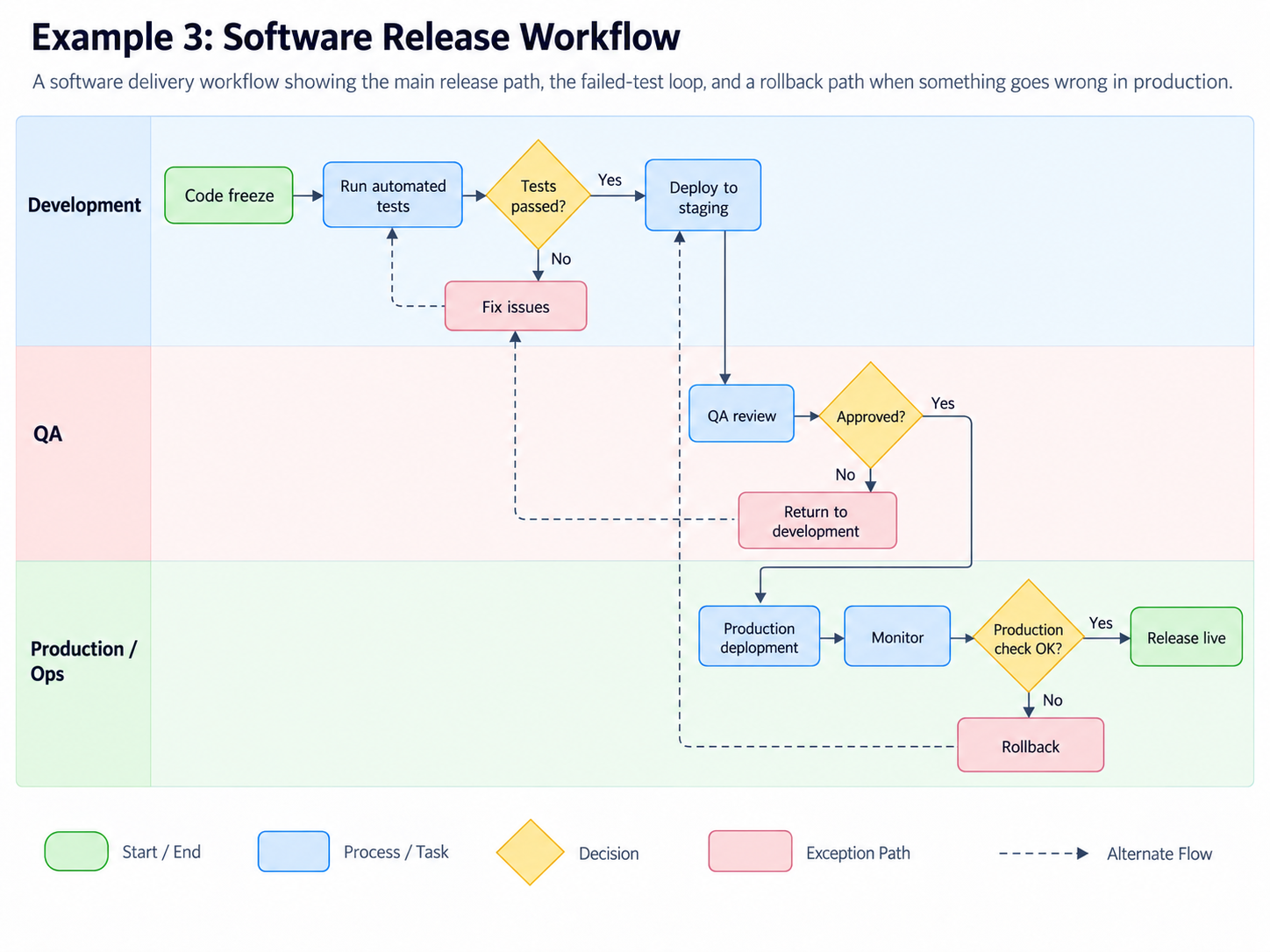

Example 3: Software Release Workflow
Code freeze → Run automated tests → Tests passed? → Deploy to staging → QA review → Approved? → Production deployment → Monitor
A failed test sends the workflow back to development. A failed production check can trigger a rollback path.

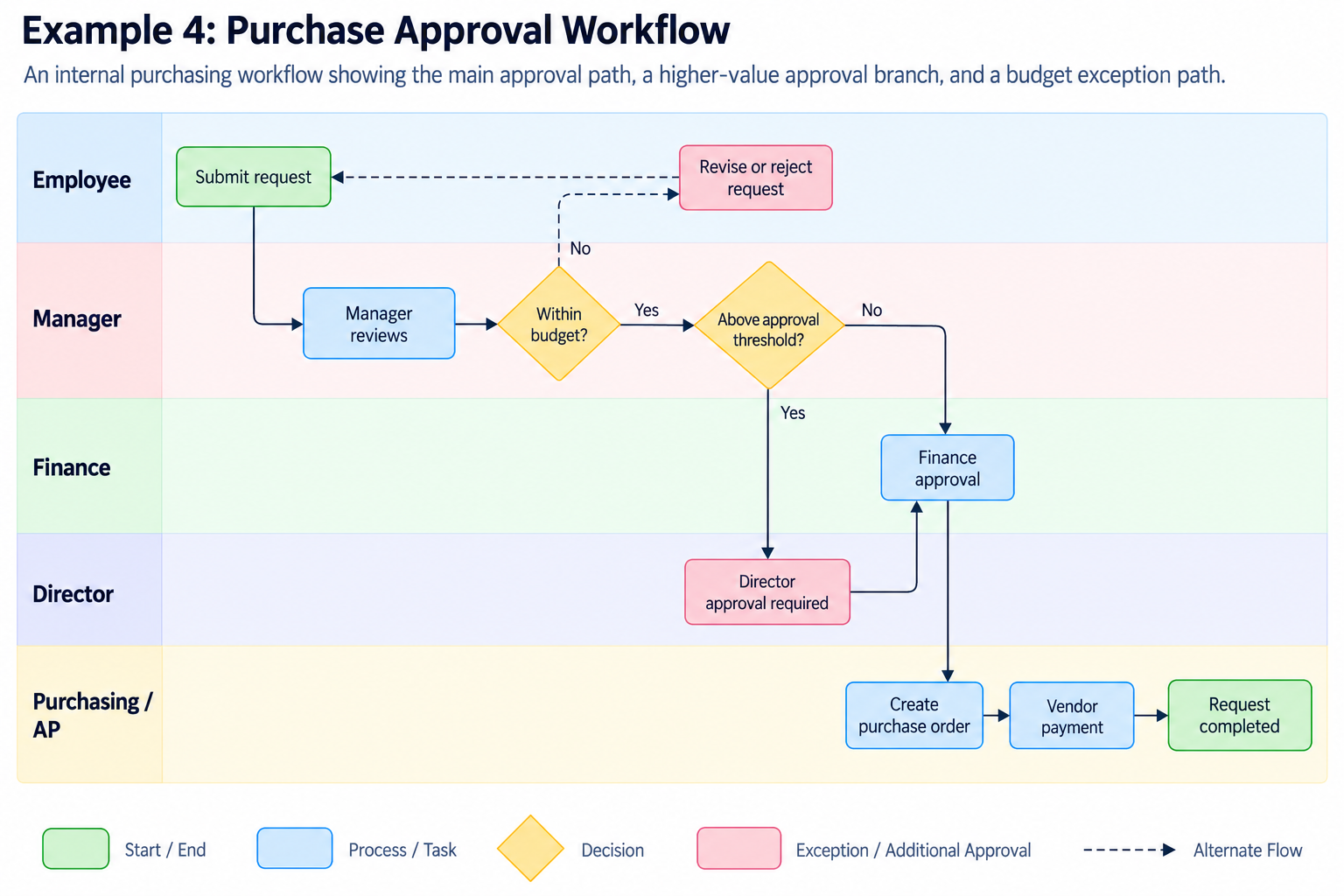

Example 4: Purchase Approval Workflow
Employee submits request → Manager reviews → Within budget? → Finance approval → Purchase order → Vendor payment
A higher-value purchase can introduce another branch: Above approval threshold? → Director approval required.

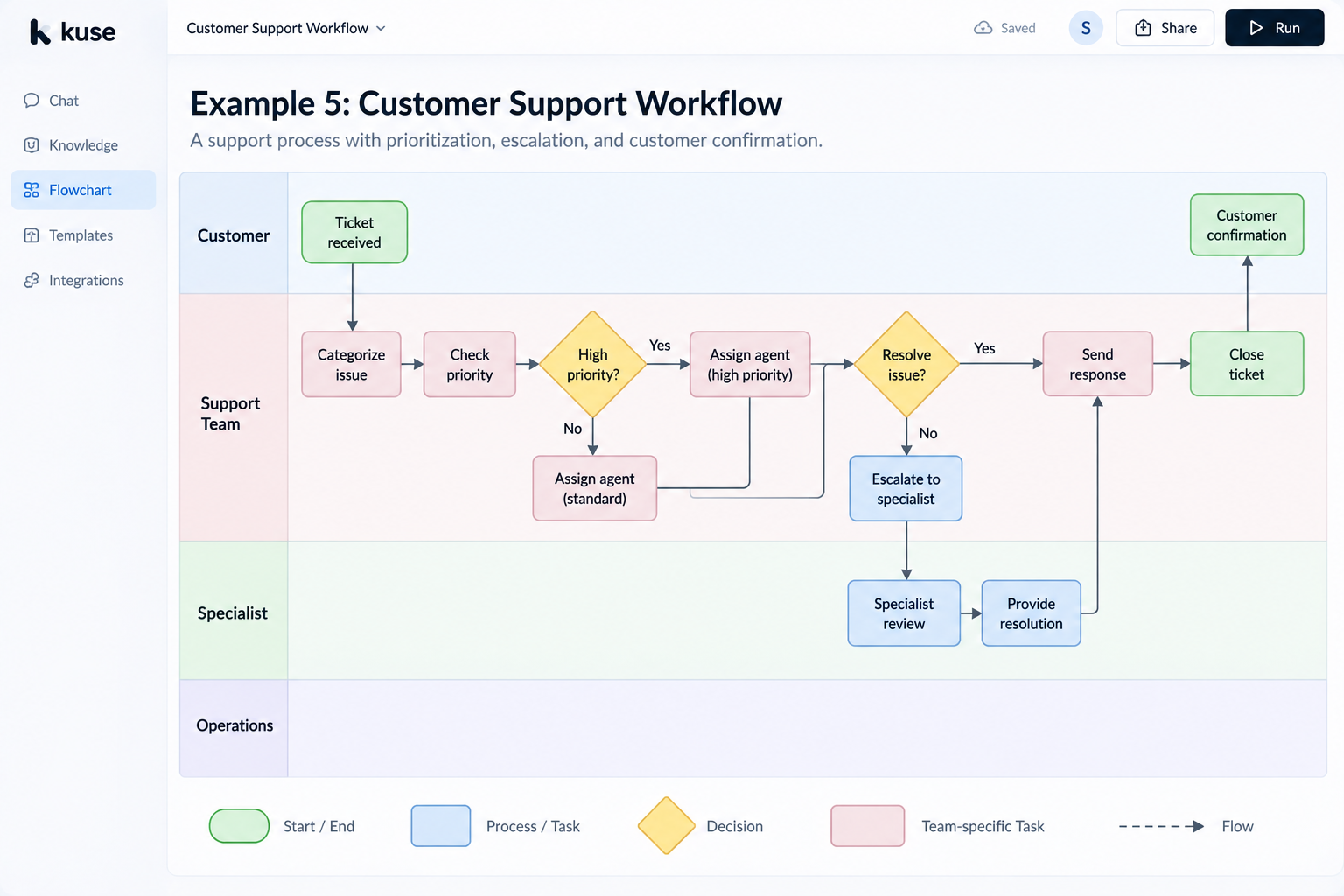

Example 5: Customer Support Workflow
Ticket received → Categorize issue → Check priority → Assign agent → Resolve issue? → Send response → Close ticket
If the agent cannot resolve the issue, the process can branch to: Escalate → Specialist review → Resolution → Customer confirmation.

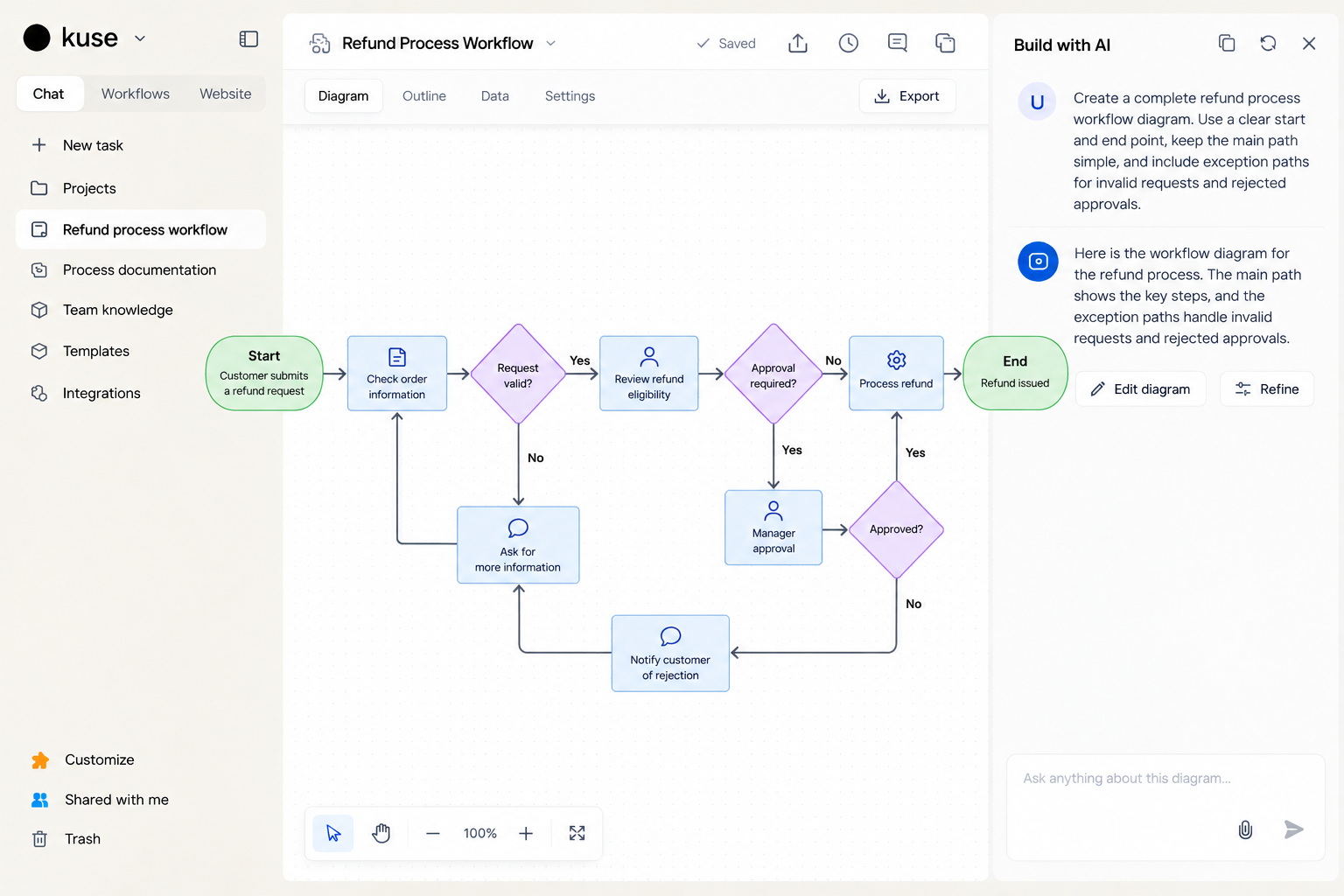

How to Create a Workflow Diagram in Kuse

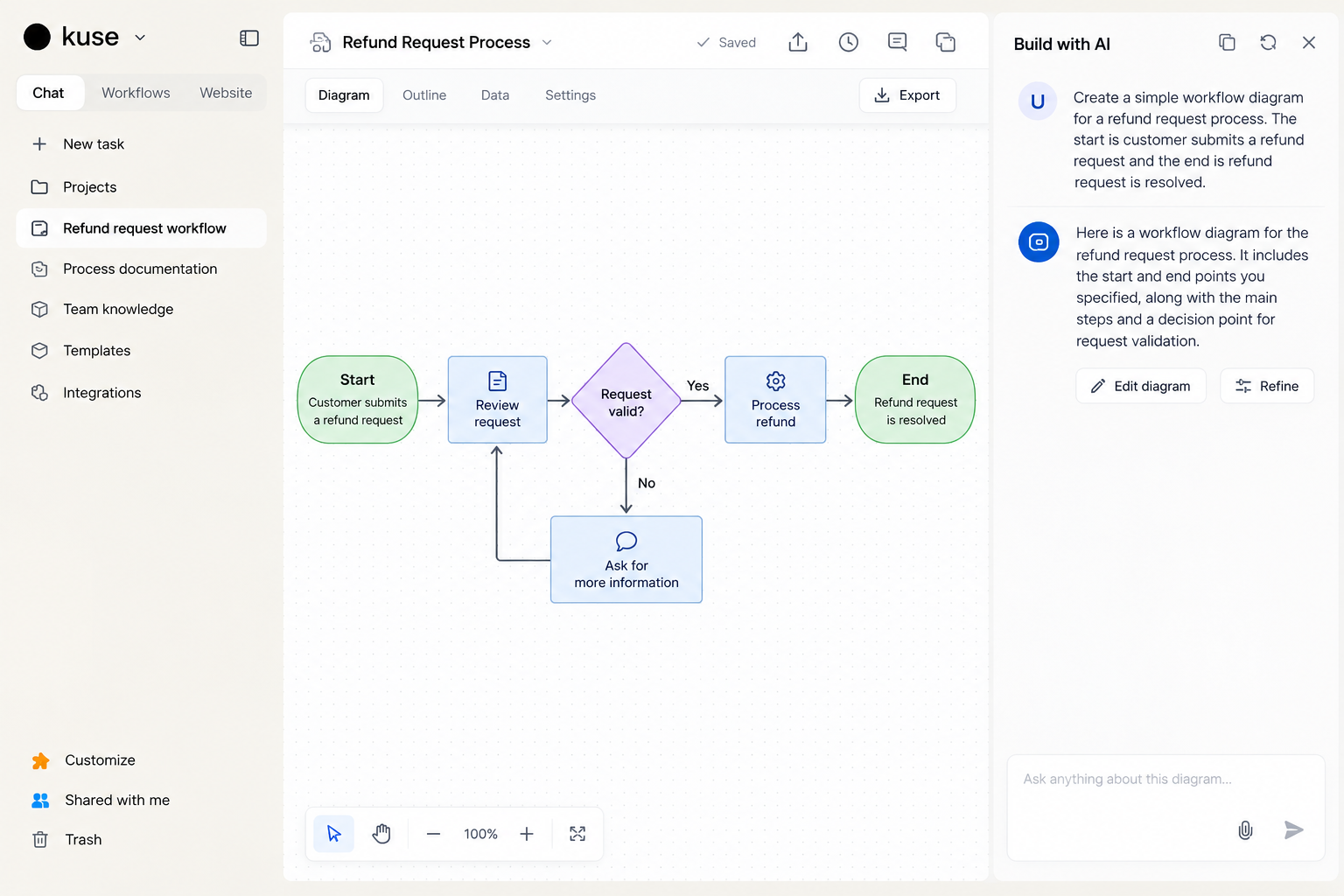

1. Define the start and end points
Choose one specific process. Clear boundaries keep the workflow focused: for example, start with “Customer submits a refund request” and end with “Refund request is resolved.”
2. List the steps in order
Write down what actually happens between the starting point and the final outcome. For a refund request, this may include checking the order, checking eligibility, approving high-value refunds, processing the refund, and sending confirmation.

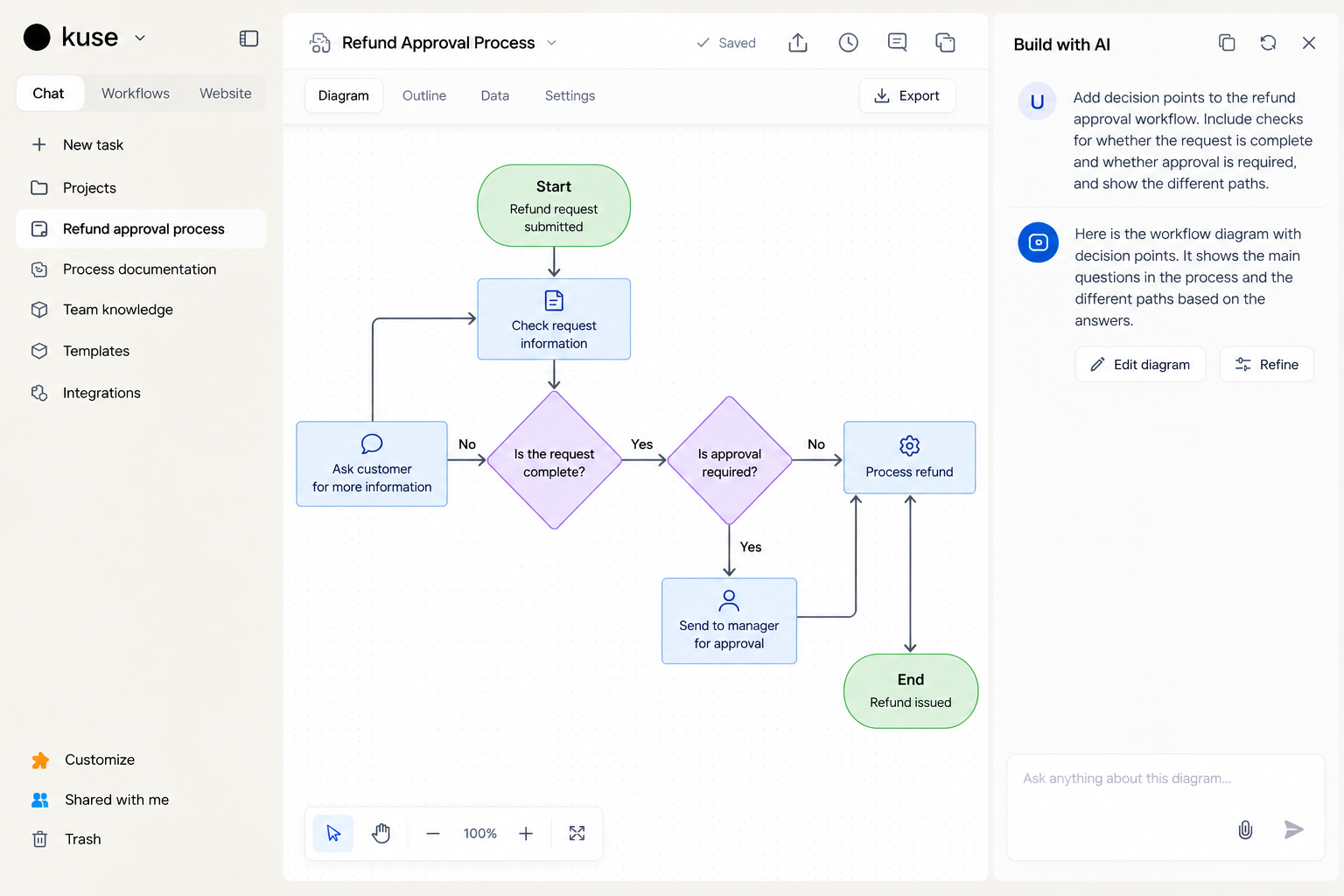

3. Add decision points
Look for places where the workflow can take more than one path. Common questions include: Is the request complete? Does it meet the criteria? Is approval required? Did the check pass?
4. Identify owners and hand-offs
Determine who performs each step. If several teams are involved, use swimlanes to reveal dependencies and prevent work from getting stuck between teams.
5. Draw, review, and simplify

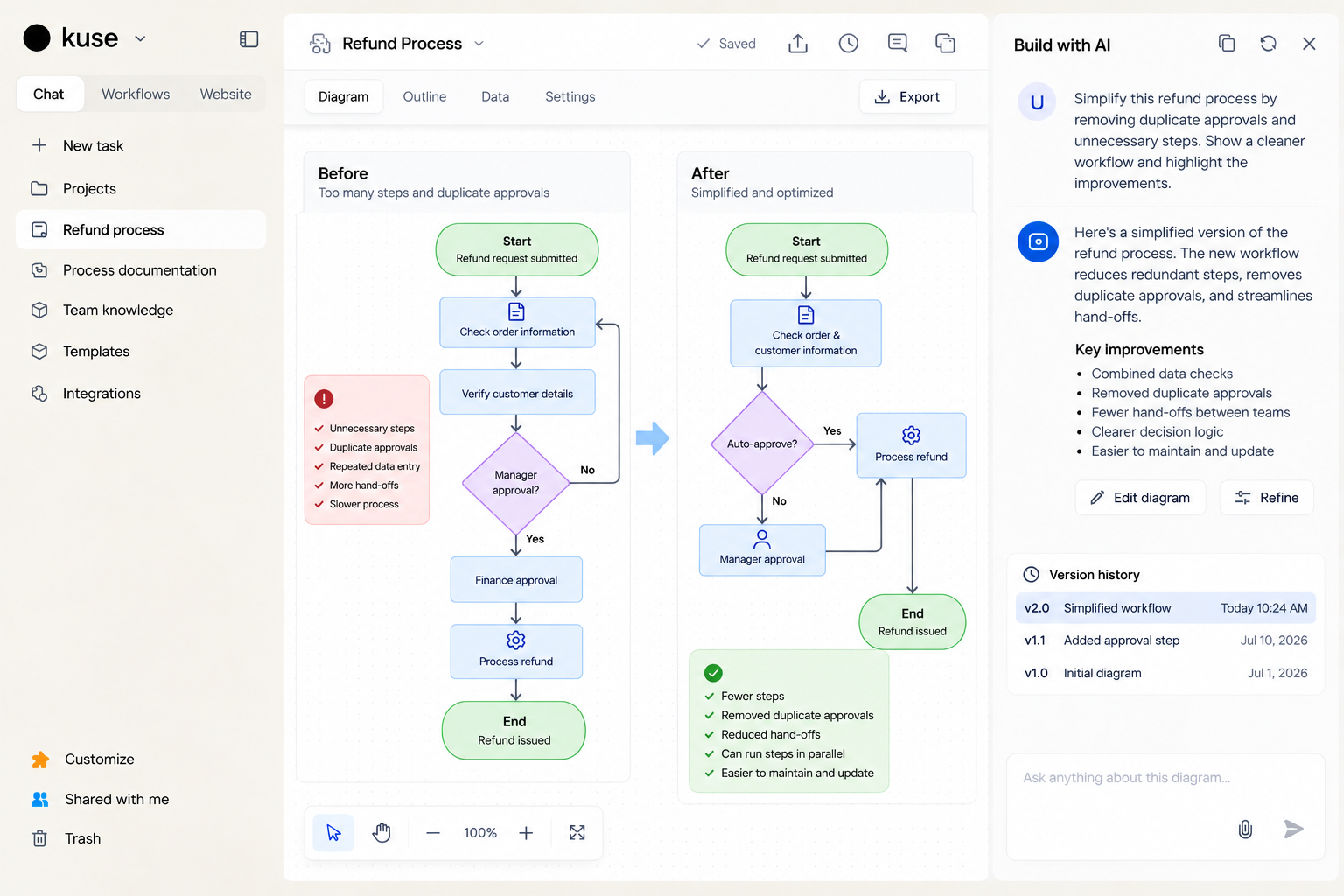

Place the start point first, connect each step in sequence, and keep the main path simple. Review the diagram with the people who do the work: ask whether steps are missing, whether the order is real, what happens when something goes wrong, and who owns each step. Update the diagram when the process changes.
Common Questions About Workflow Diagrams
What is a workflow diagram used for?
A workflow diagram is used to visualize how a process works from start to finish. Teams use workflow diagrams to document procedures, train employees, clarify responsibilities, identify bottlenecks, and improve processes.
What symbols does a workflow diagram use?
Common workflow diagram symbols include ovals for start and end points, rectangles for process steps, diamonds for decisions, parallelograms for inputs and outputs, and arrows for the direction of the workflow.
What is the difference between a workflow diagram and a flowchart?
A flowchart is a general visual representation of a process or logic. A workflow diagram is a type of flowchart focused specifically on how work moves through a process, often emphasizing roles, hand-offs, and approvals.
What should be included in a workflow diagram?
Most workflow diagrams include a clear start and end point, process steps, arrows showing direction, decision points where necessary, and the people or teams responsible for important tasks.
How do I make a workflow diagram quickly?
Start by defining the beginning and end of the process, list the steps and decisions, and then map them visually. An AI flowchart generator can speed up this process by turning a written description or SOP into an editable first draft.
Turn Your Workflow into an Editable Diagram
You do not have to build every workflow diagram box by box. Turn a process description, SOP, or set of notes into an editable diagram with Kuse's AI Flowchart Generator. Review the logic with the people responsible for the work, then refine the diagram in Canvas as the process evolves.
